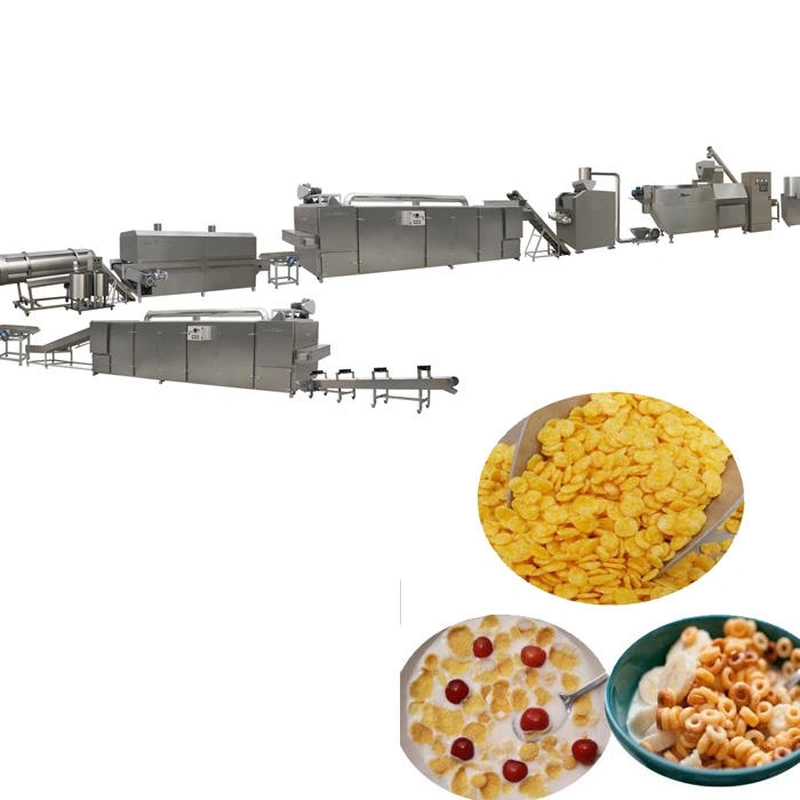

puff breakfast cereal making machine corn flakes production line

corn flakes making machine corn flakes snacks extruder corn flakes complete production line

Corn flakes production line/Corn Flakes Making Machine equipment list

1) Mixer   2) Screw Conveyor   3) Extruder   4) Vibrating feeder   5) Drum-type dryer

6) Air Conveyor   7) Flaking machine   8)Air Conveyor   9)Dryer   10)Hoister

11) Vibrating feeder   12)High-temperature inflated oven   13) Seasoning system

14) Multilayer Oven   15) Coolingmachine   16) Packing Machine

Description

Product Description

complete cereal corn flakes processing line cereal breakfast corn flakes snack food making machine

Corn flakes is a kind of crisp food, used grain flour as the basic raw material. By the processing line it is processed to flakes instant food which is pressed by particle.

The outstanding feature is that it is rich in composite carbon compounds and dietary fiber. At the same time, corn flakes can not only strengthen much trace element,

such as vitamins and minerals, but also add cocoa and sugar,such as honey,maltose, etc. After adding into coffee,milk,yogurt,or functional drinks, we can directly eat it.

Children can also eat it as sweet and brittle leisure snack food.

Flow chart :
grinding→mixing→extruding→flaking→drying→hot air baking→sugar spraying→drying→cooling→packaging

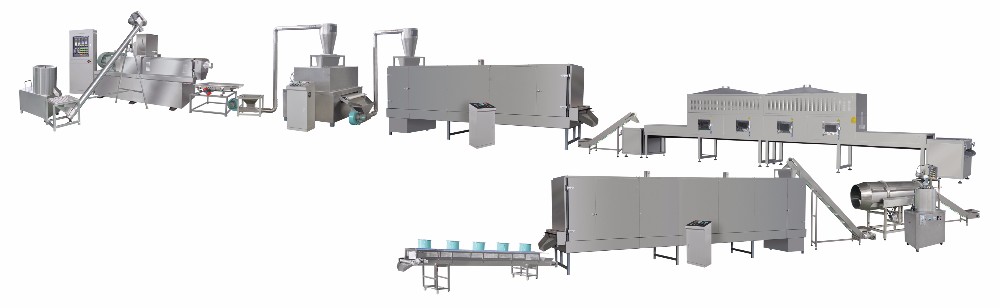

Flow chart diagram:
Our engineer could design the layout drawing according to your dimension of the factory for the snacks food machine.
Machine parameters：
Model
Installed Power
(kw)
Power Consumption
(kw)
Capacity
(kg/h)
Dimension
(m)
DSE65
74
52
120-180
17*1.2*2.2
DSE70
95
70
200-300
20*1.5*2.2
DSE75
110
82
250-400
26*1.5*2.2
DSE85
139
104
400-800
28*3.5*4.3
Final product:
Corn flakes, and variety shapes of breakfast cereals are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder.
Equipment list in the corn puff snacks food production line:
mixer→screw conveyor→twin screw extruder→air conveyor→flaking machine→air conveyor→dryer→hoister→hot air baking machine→flavoring drum and suger sprayer→dryer→cooling
machine→packing machine

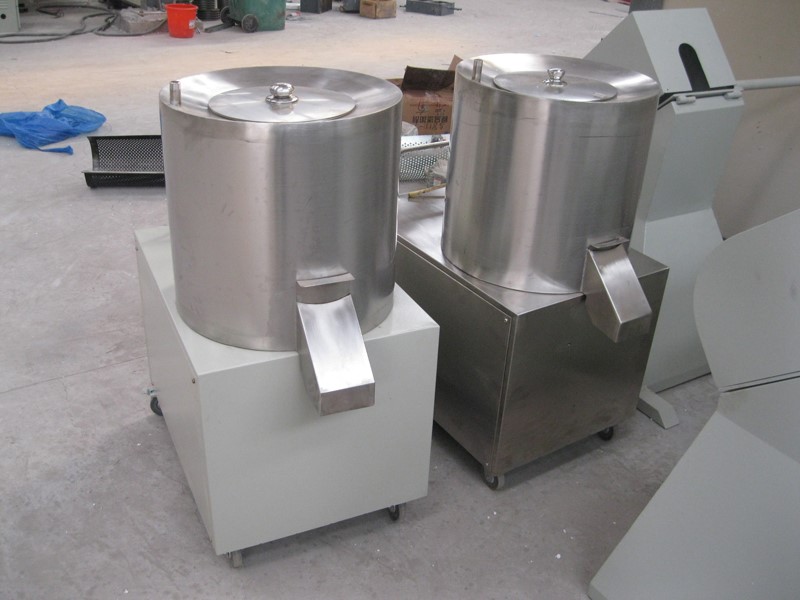

Name
Mixer
Usage
To mix the raw materials evenly, fast speed, no leakage.
Type
Vertical and horizontal type
Motor
3kw, 4kw, 7.5kw etc.
Capacity
20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material
stainless steel, carbon steel

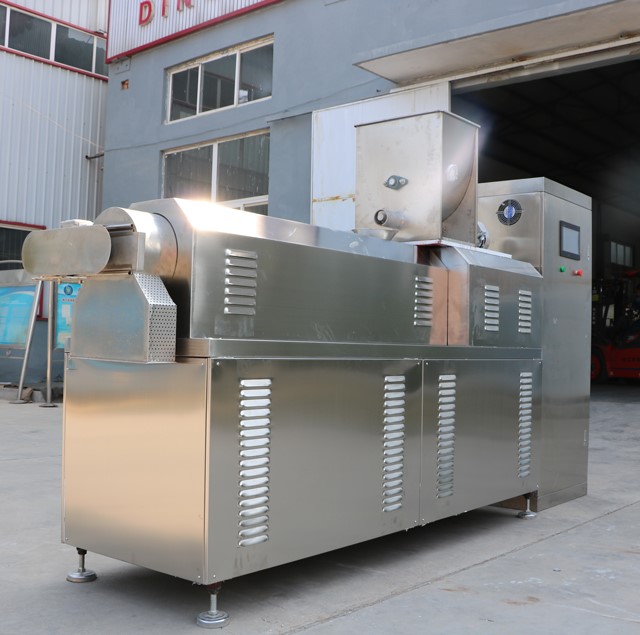

Name
Twin screw extruder
Usage
To extrude the raw materials and make them to the required shape and size of the corn snacks food pellets by mould
Model
DSE65, 70, 85
Motor
22kw, 37kw, 75kw
Capacity
100kg/h to 500kg/h
Material
Screw materials 38CrMoAlstainless steel, carbon steel
Technical parameter for corn flakes extruder
Model
Installed Power(kw)
Power Consumption (kw)
Capacity(kg/h)
Dimension(m)
DSE65
74
52
100-150
17*1.2*2.2
DSE70
95
70
200-250
20*1.5*2.2
DSE85
139
104
300-500
28*3.5*4.3

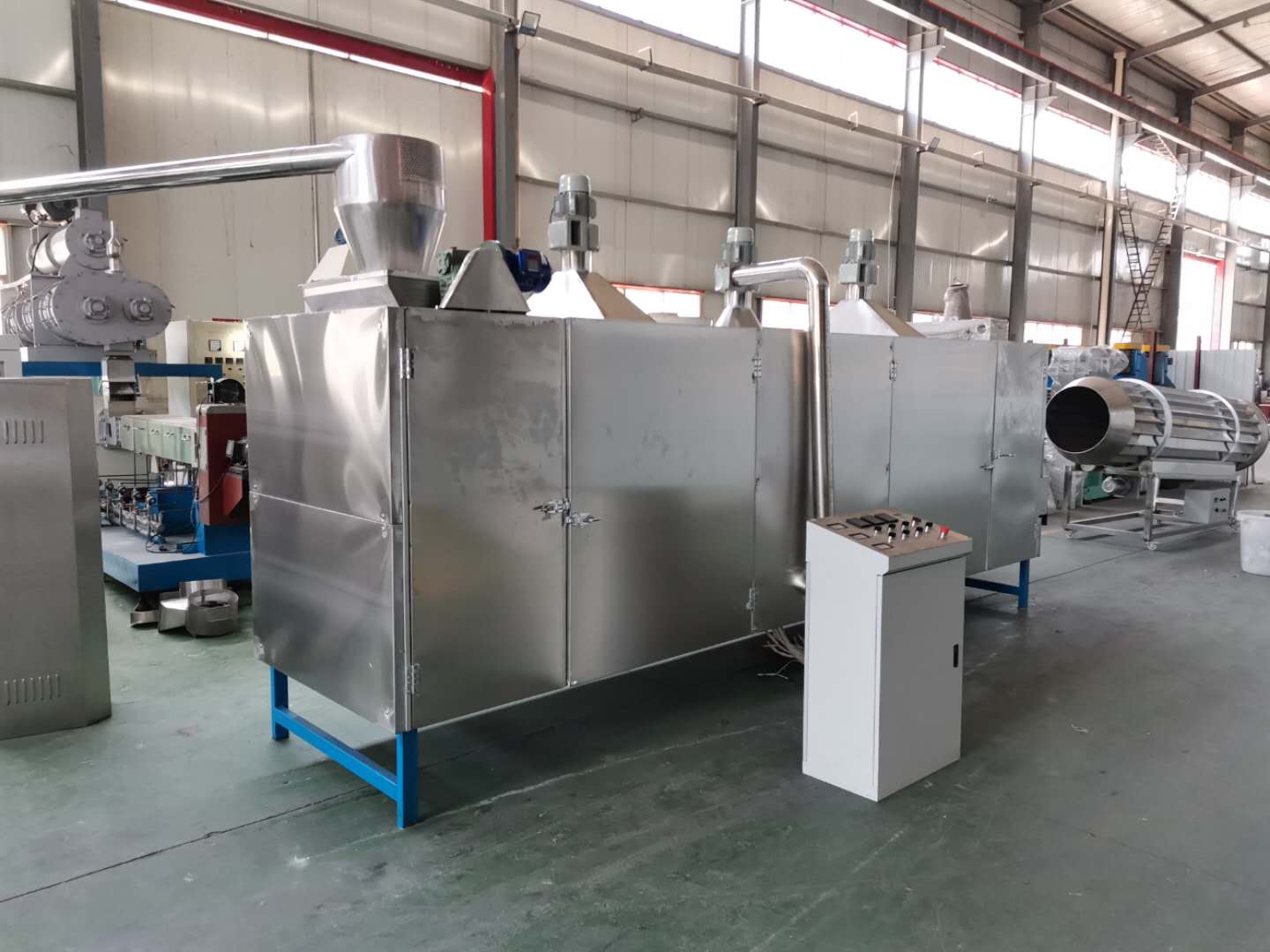

Name
Dryer (oven)
Usage
the expanded food go through the "s" passage, to be dried to increase the self life.
Type
electrical, steam, gas fired, diesel fired heating type
Model
KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity
100kg/h to 10 ton/h
Material
stainless steel, carbon steel

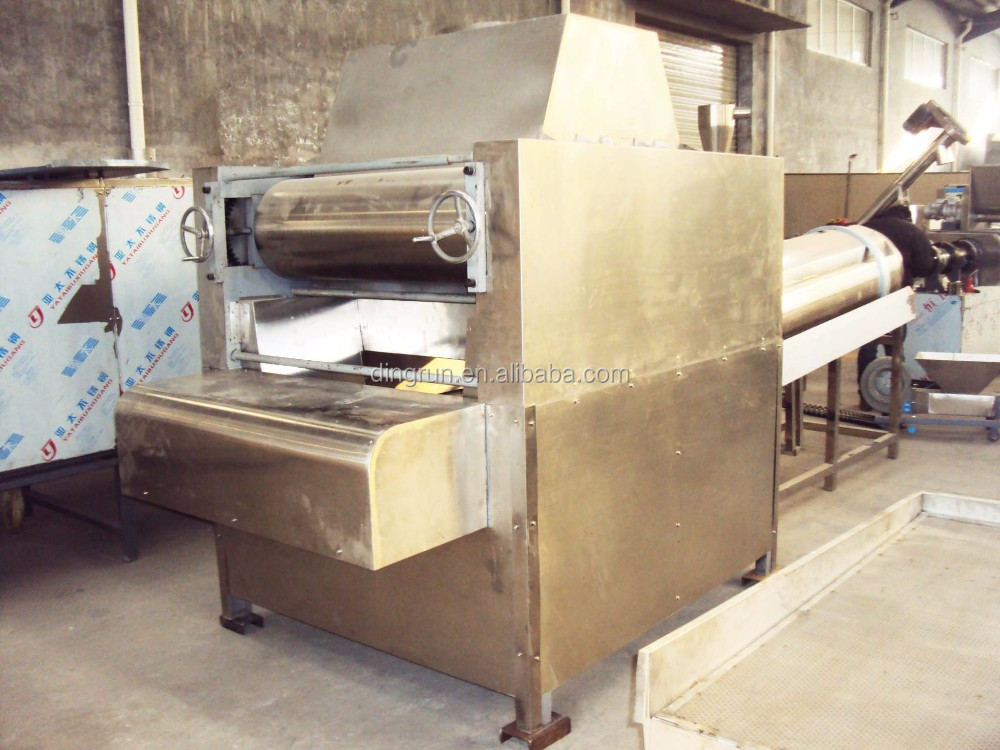

Flaking machine

To make the puff corn balls to the flakes shape

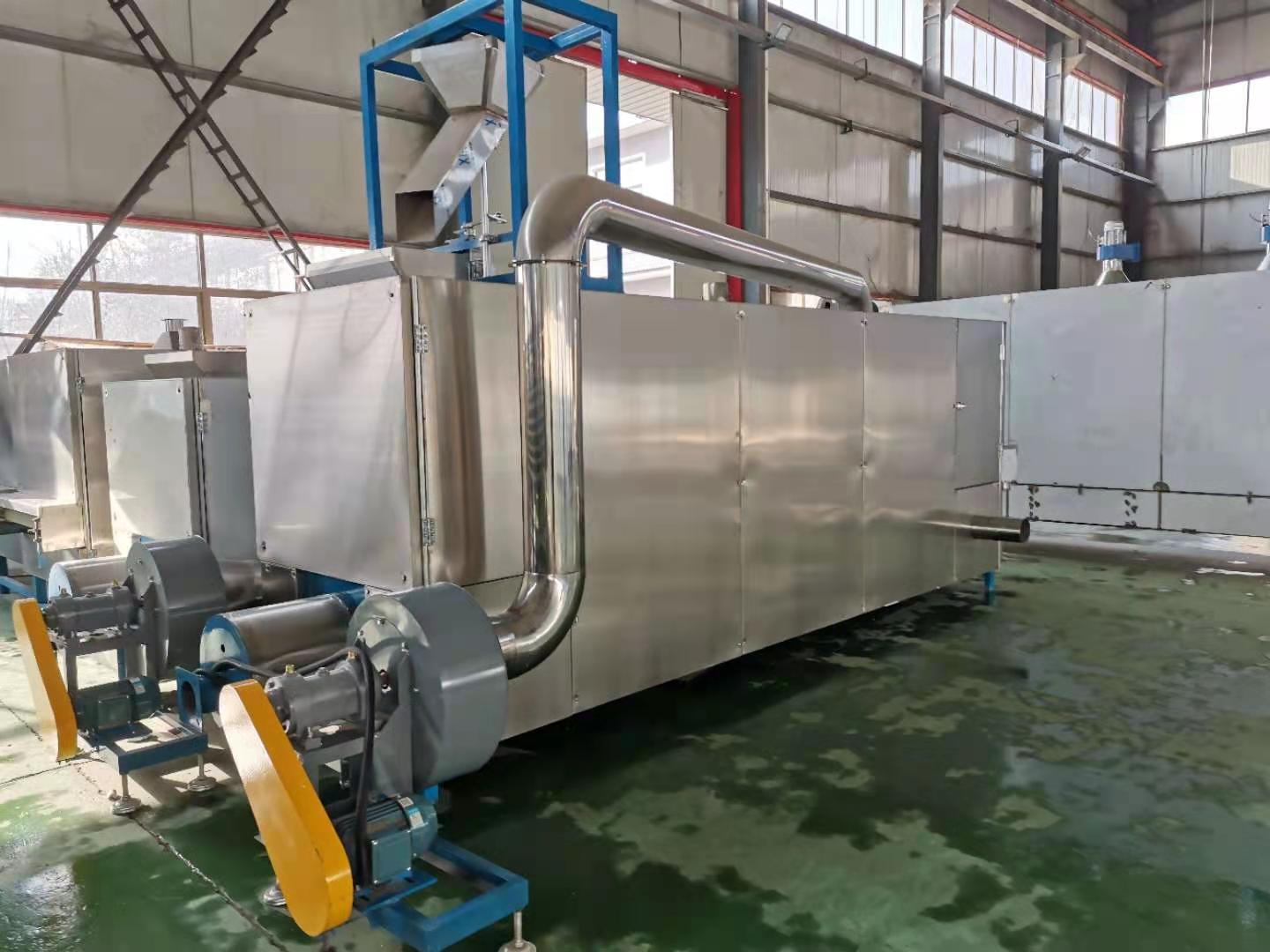

Hot air baking machine

To bake the corn flakes and make it puff enough to get crisp taste

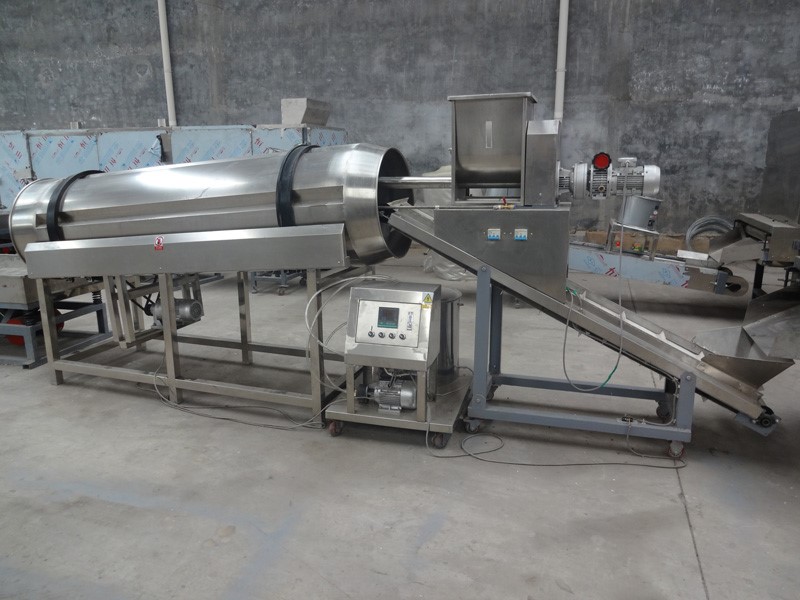

Name
Flavoring machine
Usage
To mix the sugar and spray the sugar on the surface of the corn flakes
Type
single and double flavoring drum
Motor
0.75kw
Capacity
100kg/h to 500 kg/h
Material
stainless steel
