fully automatic roti maker chapati making machine nan bread paratha making machine

Lacha paratha machine is designed to make various kind of products such as paratha, green scallion pie,etc.
It is available for chopped ginger and green onion ,sesame as filling
The automatic oil device can prolong the life of fixture service
The machine is easy to assemble, clean and maintain.All parts contacted with food are made of food grade stainless steel
It is an automatic Muti-function machine which can produce chapatti&Pratha&Roti and so on.

3. Quality assurance:
It is an automatic Muti-function chapatti&Pratha&Roti maker machine,which has many excellent characteristics as follows:

(1)Adopting the stainless steel,which is easy to clean and maintain.
(2)Employing the control to control,and the inverter is stepless.
(3)The equipment such as scatter sesame or onion automatically is installed.
(4)The equipment that offer lubrication is setted to extend the service.

Description

Technical Parameter
Model
GYZB-1
GYZB-2
GYZB-3
Capacity
1000-2000 kg/h
500-1000 kg/h
500-1000 kg/h
Power
2.75kw
1.8kw
0.4kw
Dimension
4800*720*1500mm
850*940*1350mm
2500*750*1100mm
Weight
820kg
180kg
250kg

ABSZB-1

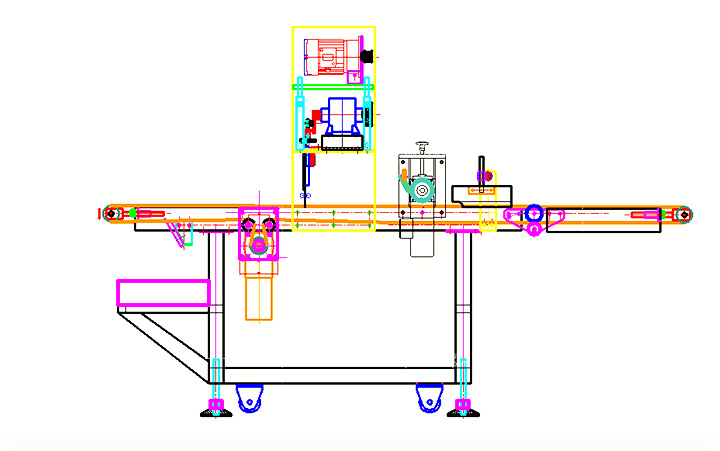

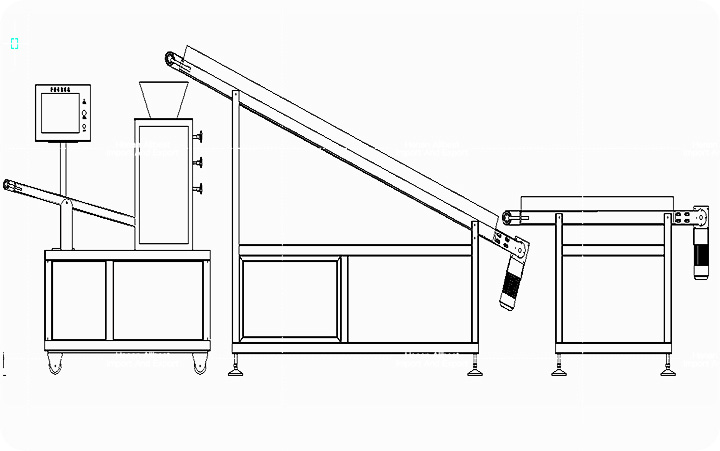

Dough conveying and pre-press unit

ABSZB-2

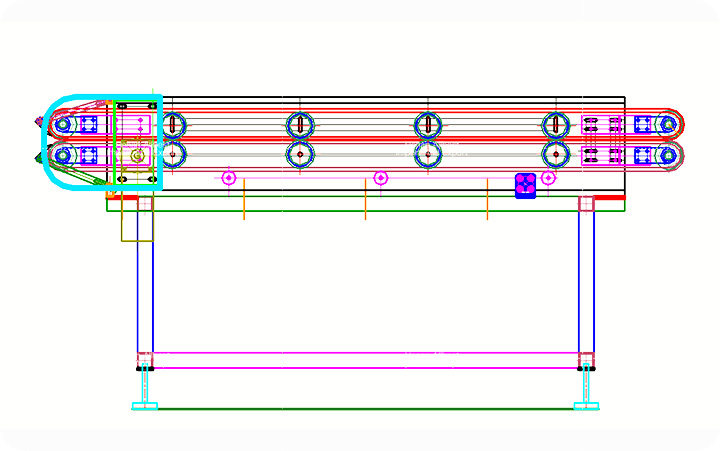

Four-step extension unit

ABSZB-3

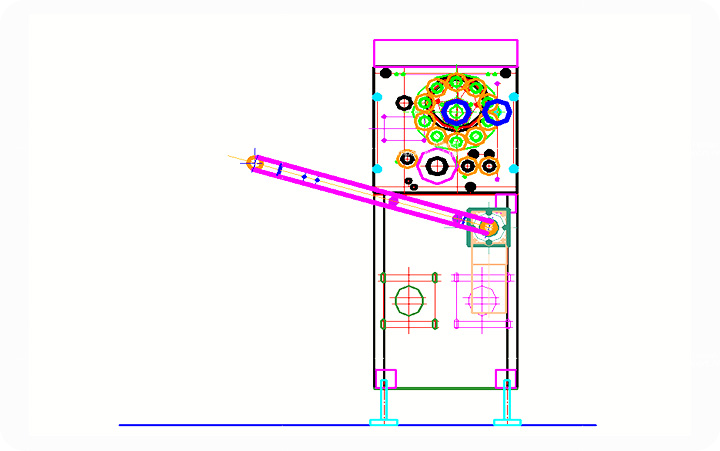

Dough sheet expansion machine
Model
GYZB-4
GYZB-5
GYZB-6
Capacity
500-1000 kg/h
500-1000 kg/h
60-120 pcs/min
Power
0.75kw
1.5kw
1.5kw
Dimension
3980*1150*1680mm
8200*760*1720mm
2200*720*1600mm
Weight
400kg
900kg
380kg
ABSZB-4

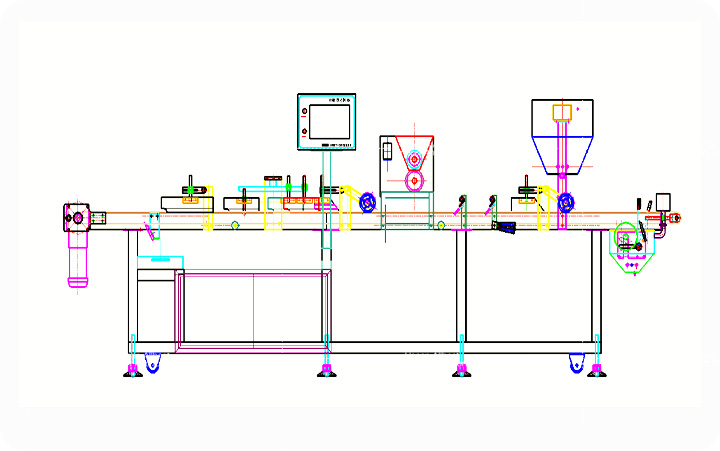

Oil brusher、spreader and rolling unit

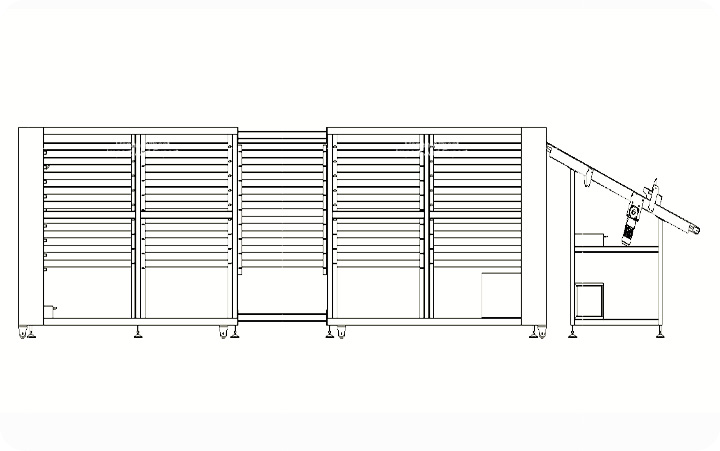

ABSZB-5
6 Lift machine and fermentation tunnel part
ABSZB-6

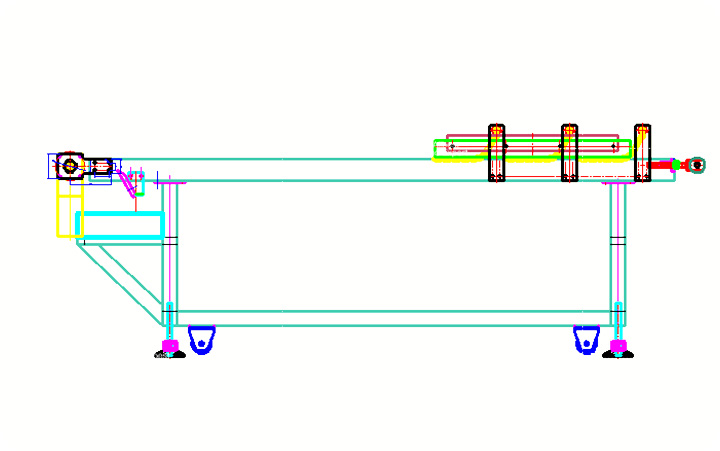

Electromagnetic cutting machine
Model
GYZB-7
Capacity
60-120 pcs/min
Power
0.75kw
Dimension
2650*720*930mm
Weight
220kg
Name
Rolling machine

Product Description

Machine introduction
  By feeding the mixed dough to start the automatic Processing line. It will automatically press and roll the dough, then stretch it into a thin skin after rolling, widening and stretching. it is formed, rolled, stuffed and cut into dough bun..


Specification

Production Flow
Dough Feeding - Dough Pressing and Sheeting - Dough Sheet Stretching - Oil Dropping - Sprinkling -Dough Sheet Rolling - Dough Resting & Oil Solidifying - Cutting - Paratha Dough Ball Rolling

* It is available for chopped beef ,barbecued pork meat and green onion , bean paste as stuffing
* Automatic stamping and fliming machine ,Place the dough balls between the top and bottom film, through the pneumatic pressing plates to press them into thin pastries, then cut the film for counting and stacking.
* The machine is easy to assemble, clean and maintain. The automatic oil device can prolong the life of fixture service All parts contacted with food are made of food grade stainless steel.

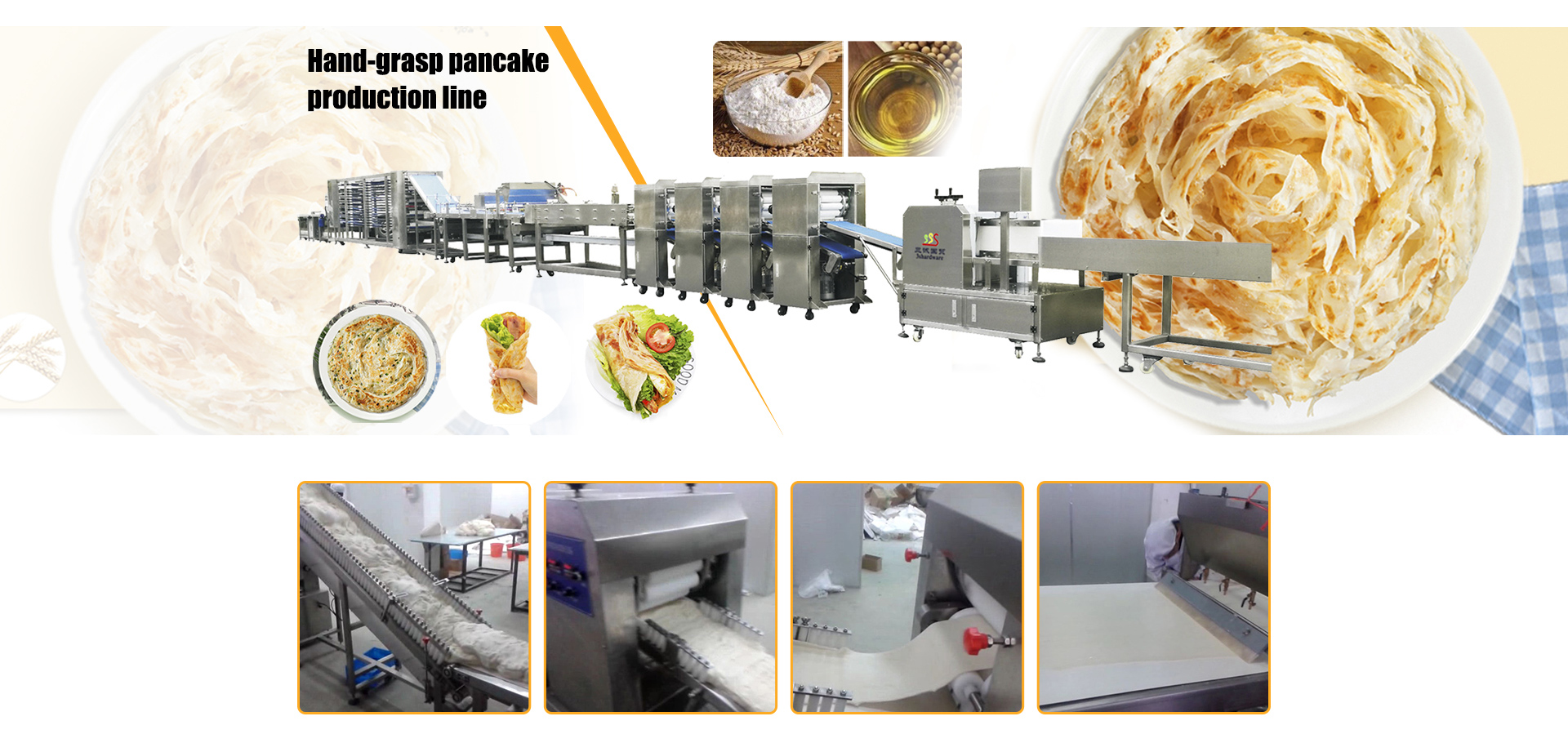

Machines involved in this production Line
No.
Machine Name
Quantity/Set
1
Dough Pre-pressing Machine
1
2
Dough Sheet Shaping Machine
4
3
Oil Brushing and Conveying Table
1
4
Dough Stretching Machine
1
5
Dough Thinning and Forming Machine
1
6
Dough Cutting Machine
1
7
Melt Tank
1
8
Paratha pressing and film covering
1
9
Counter Plateform and Stacker
2
