Full-automatic wafer machine features reliable performance,compact structure,small occupation,high yield,lower energy consumption,convenient maintenance,simple operation.The driven motors adopt SEW Germany, the bearings use SKF. Operating system uses PLC programing to make the process automated and easy control.
Features and Characteristics
*All motor, electrical equipments are international standard---famous international brand or Chinese brand.
*Reasonable layout, compact structure, small occupation.
*High automatic, stable performance,machine can be controlled separately, simple operation and easy maintenance.
*Elements of wafer machine uses famous international or imported brand: motors from SEW Germany and bearings are high temperature prevent SKF Germany. HMI operation panel and PLC unit can be Mitsubishi or Siemens. Appliances adopts Danfoss, Schnerider, Omron. Conveyor belt is foodstuff PU quality.

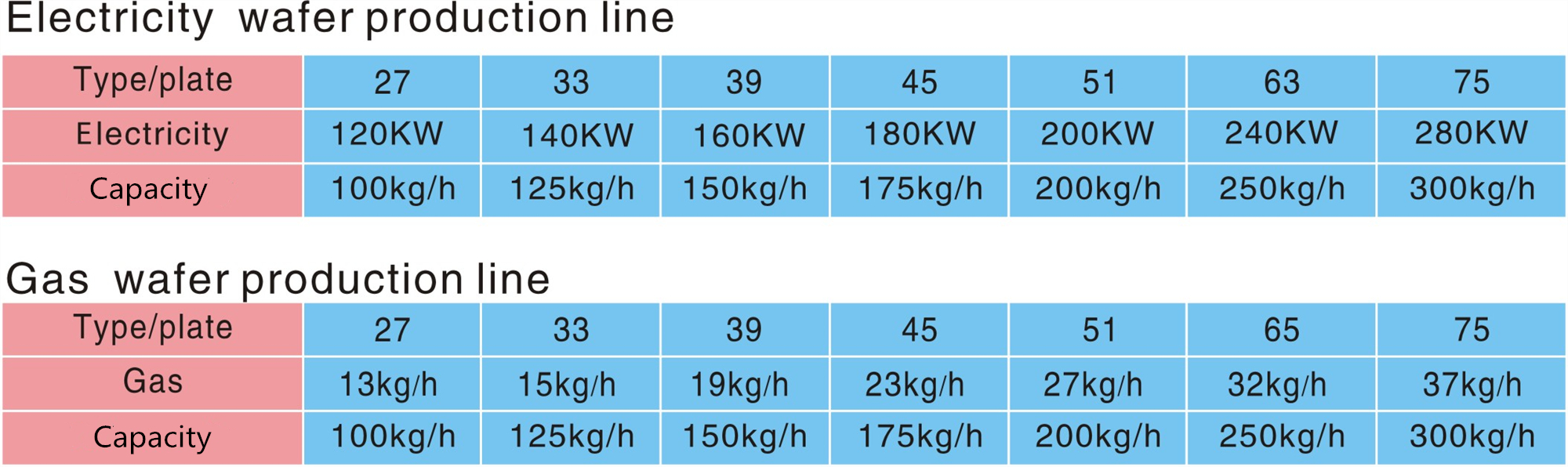

Capacity list
List of complete line
NO | Name | Dimension (L×W×H):mm | Power KW | QTY |
1 | SH-R75 plates Baking oven | 14730×2000×2400 | 18.3 | 1 |
2 | Sheet receiver | 1723×1150×820 | 0.18 | 1 |
3 | Cooling tower | 2600×1050×2430 | 0.55 | 1 |
4 | Sheet Picking machine | 2200 ×1060×840 | 0.18 | 1 |
5 | Cream spreading machine (one color) | 2485×1200×1730 | 2.92 | 1 |
6 | Vertical cooling cabinet | 3700×1200×2612 | 18.83 | 1 |
7 | Conveyor | 2200×1050×980 | 0.18 | 1 |
8 | Cutting and laminating machine | 1545×2100×1100 | 0.75 | 1 |
9 | Batter Mixer | 1860×900×1600 | 5.5 | 1 |
10 | Cream mixer | 1700×800×1600 | 5.05 | 1 |
11 | Smash machine | 690×610×1250 | 3.0 | 1 |
Machine Pictures
Wafer sheet baking from oven, automatically transfer to cooling tower and cooling in the air. Cream will be automatically applied on wafer sheet,
after the cooling from cooling cabinet, wafer book cut on cutting machine.
Detail Pictures

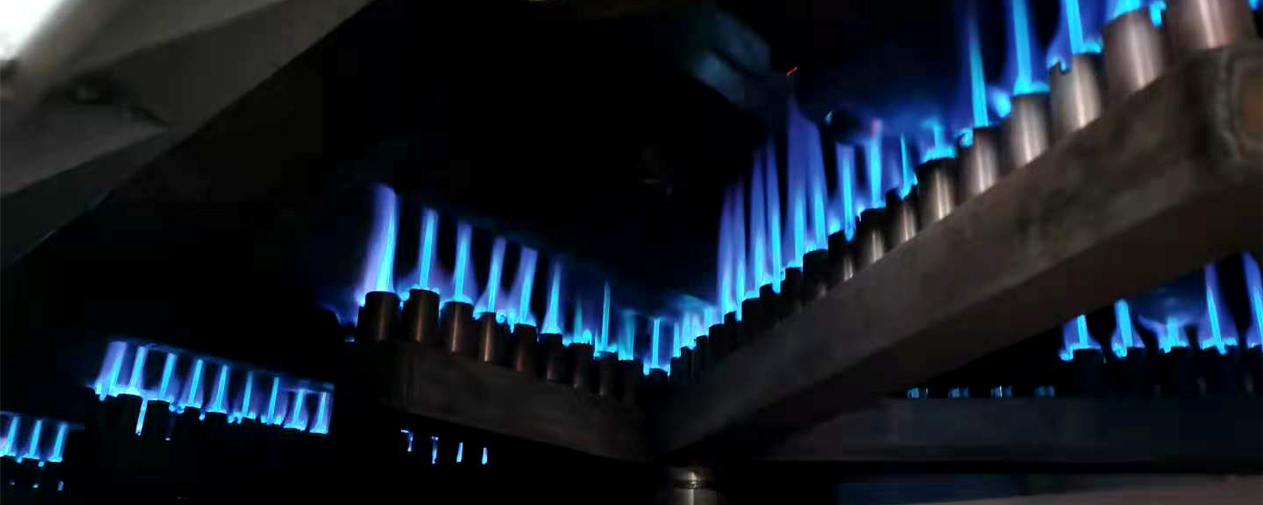

Baking oven has a great and effective burning inside oven chamber
Automatic batter deposit with accurate positioning
