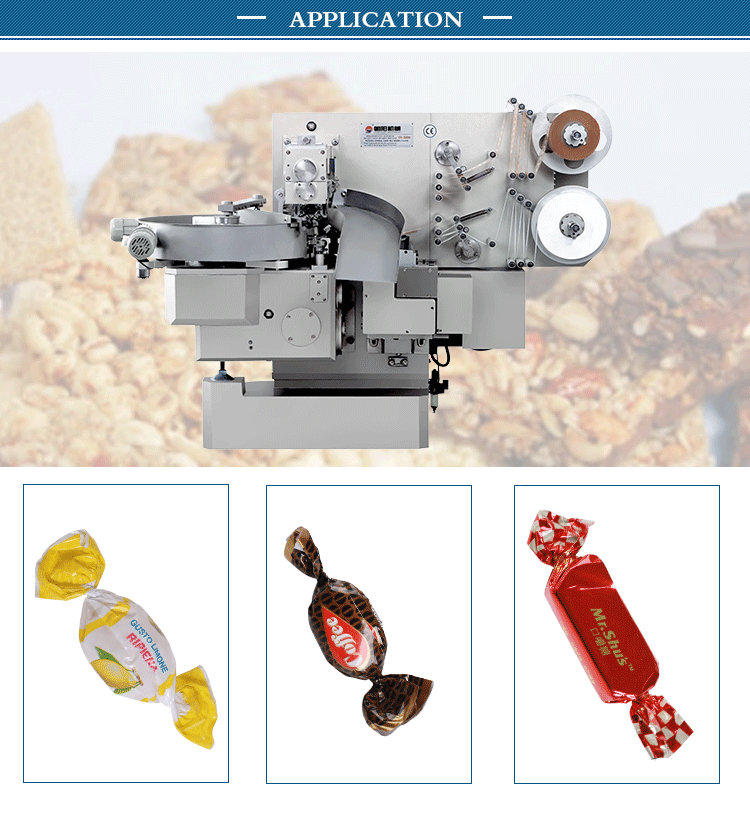

Candy chocolate single & double twist packing machine


Twist packing machine for candy and chocolate


With feeder disc and ensure auto. feeding, single storey or double-deckpaper . Packing rate 100%, without empty bag, inverter adjusts the speed.Wrapping material: Cellophane, PVC, polypropylene, paraffin paper, composite, etc.Candy shape: Ellipse, cylindrical, square, sphere, round slice, etc.

Description

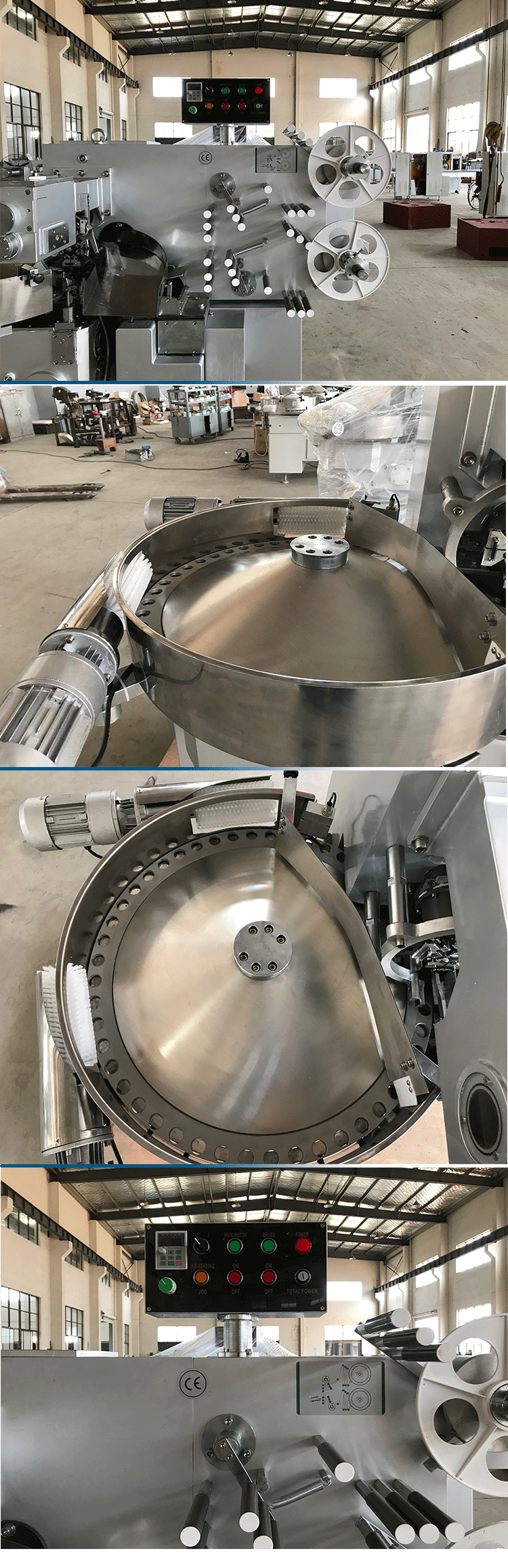

This machine with feeding disk for candies wrapped in double twist with one or two papers. The computer photo electric automatic detect, no empty packs, speed adjusting of frequency conversion. 1. It is easy to operate, high effect, manpower saving, pretty style, low noise, working smoothly, low fault occurrence and convenient to repair. 2. The main core components of this machine adopt imported new-type components. High-density cam indexing unit and cam gear can reach exact movement. 3. The AC motor of the frequency converter adopts stepless speed regulation control with high precision. It can save energy and extend life. It is adjustable when the machine is working. 4. Controlled by full auto built-in computer , inspected by international advanced photoelectric sensor, traced  bi-directional with fast speed, 100% packing rate, no empty package. 5. It has the functions of overload protection, demoulding protection, and timely alarm when there is no film. 6. Food touch parts adopts stainless steel. It is good smoothness, easy to clean, which totally meets standard of food sanitation. 7. Single and double layers of wrapping paper are used. 8. It can be equipped with auto hopper.
Packing speed
200-550 pcs/min
Packing size
L: 11-32 mm; W: 11-25 mm; H: 5~20 mm
Film width
≤ 120 mm
Dimension
1800(L) × 950(W) × 1650(H) mm
Power
380V, 50Hz, 3kw
Total weight
1200kg


Purpose and features:
It has such features as simple operation, high efficiency, manpower saving, stable running, low noise and convenient maintenance.
The core parts use imported novel high precision wheel cam indexing mechanism to make all actions accurate.
The AC motor with frequency converter realizes stepless variable speed control. With high precision, energy saving and improved service life, dynamic adjustment during the running can be realized.
It adopts the automatic PLC computer controller and internationally advanced photoelectric sensor for detection and two-way tracking, with such functions as fast tracking, accurate patterns and being able to effectively eliminate packaging errors.
It is provided with such functions as overload protection, electric leakage protection and alarm in case of no film.
The parts that contact food are made of stainless steel, with good smoothness and easy cleaning.
It can use single-layer or double-layer packaging film and can be equipped with automatic feeding hopper.





Full-Automatic Double Twist Packing Machine/ candy wrapping machineFull-Automatic Double Twist Packing Machine/ candy wrapping machineFull-Automatic Double Twist Packing Machine/ candy wrapping machine


Product Description

Packing Machine Feature

1. Fully automatic program-controlled with servo motors, highly stable and reliable
2. Flexible in color sensor settings, paper feeding self-tracking and correction during packing, providing a consistent packing style and a good product appearance
3. Self-protection for abnormal product
4. Online product feeding status monitoring – Only feeding wrapping paper when product arrives desired position, which keeps paper consumption at an extremely low level
5. Online wrapping paper status monitoring – automatic pause when wrapping paper is running our or breaks


Product Descriptio

DN/SN-TP300 (single and double-twisting) series automatic packing machines are used for the twisting style packing of chocolate, praline, pressed candy, and etc. Both models use foil special for twisting packing and are suitable for various kinds of products in different shapes and sizes, providing excellent packing performance.This machine main consists of product feeding system,twisting system ,paper feeding system and product output system.

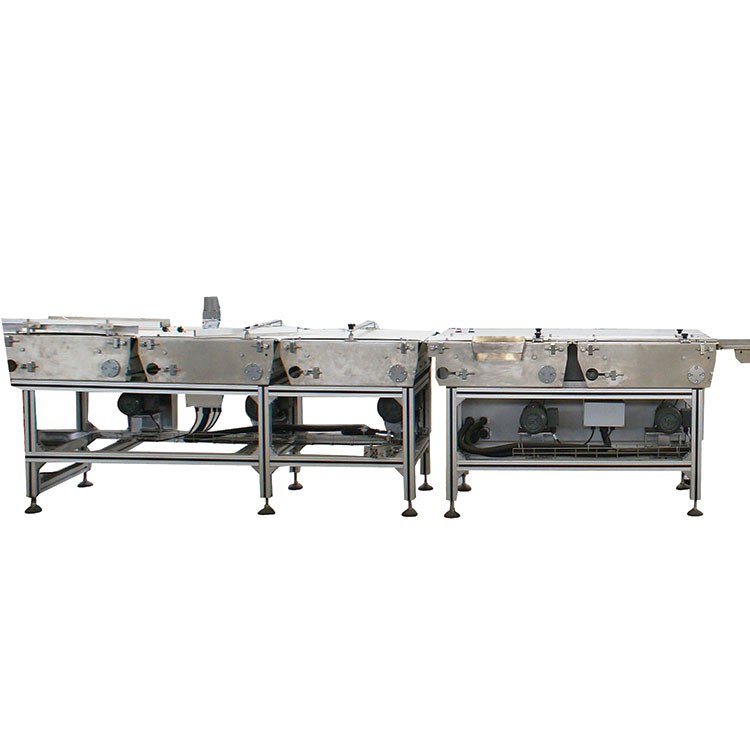

DN/SN-TP300series machines are used for arranging and disordered products so that they can be fed into the packing machine steadily and quickly. The machine includes several feeding system, transportation belt and different kinds of steel rails and is controlled by the connecting packing machine, which ensures the excellency and reliability of the packing performance.
Parameters Table
Product Name
Full Automatic Candy/Chocolate Single-twisting/Double-twisting Packing Machine
Model Number
DN/SN-TP300
Packing Speed
200-360pics/min
Product Dimensions(L*W* H)
10-80 *4- 45 *4-35 mm
Total Power
3KW
Power Supply
380 V, 50 Hz, 3-Phase
Air Supply
0.6 MPa
Installation Plan(mm)
